Description:

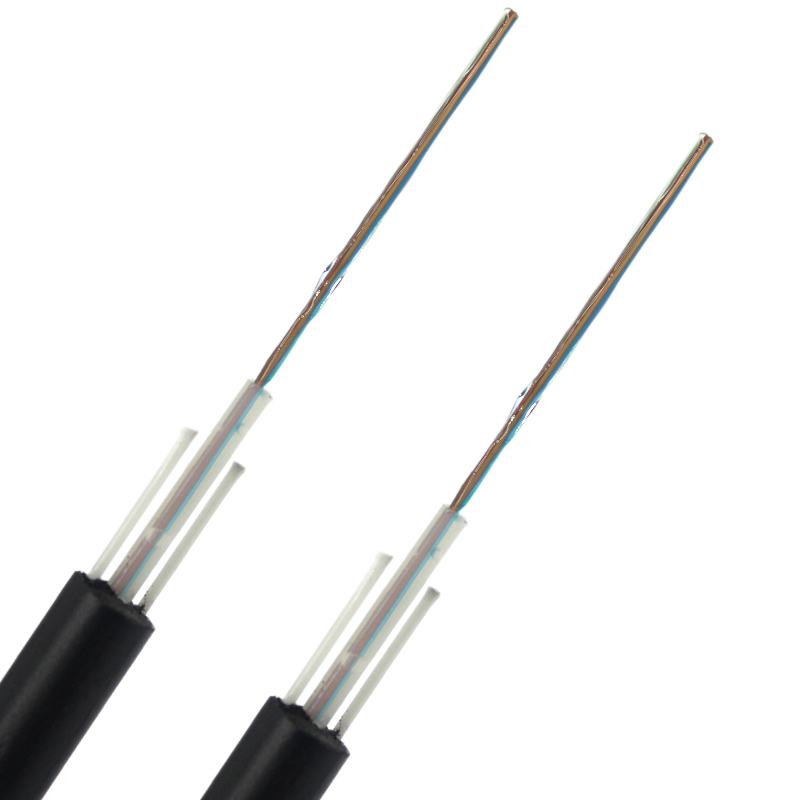

The core,9/125 is made of a loose casing with a high modulus of plastic.The casing is filled with waterproof ointment fillers.Place two FRP wires on both sides.Fiber optic cable with polyethylene (PE) sheath completed.
Characteristics:
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Two FRP wires ensure tensile strength
Small diameter, light weight and friendly installation
Fiber Parameters:
| No. | Items | Unit | Specification | |
| G657A1 | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.25 | ||
Cable Parameters:
| Items | Specifications | |
| Fiber Count | 2-12 | |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Color | Blue、Orange、Green、Brown、
Gray、Natural、Red、Black、 Yellow、Purple、Pink、Aqua |
|
| Loose Tube | Dimension | 1.8mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0 mm |
| Material | FRP/Steel | |
| Outer Jacket | Dimension | 7.0mm±0.3mm |
| Material | HDPE | |
| Color | Black | |
Mechanical and Environmental Characteristics:
| Items | Unite | Specifications |
| Tension（Long Term） | N | 600 |
| Tension（Short Term） | N | 1500 |
| Crush（Long Term） | N/100mm | 1000 |
| Crush（Short Term） | N/100mm | 3000 |
| Min. Bend Radius（Dynamic） | mm | 20D |
| Min. Bend Radius（Static） | mm | 10D |
| Installation Temperature | ℃ | -20～+60 |
| Operating Temperature | ℃ | -40～+70 |
| Storage Temperature | ℃ | -40～+70 |
