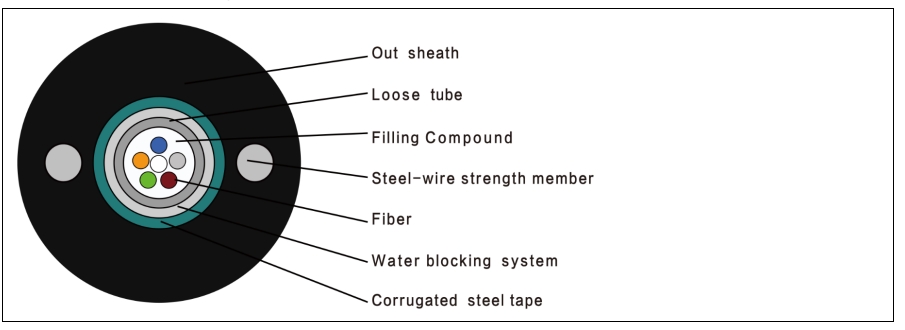

GYXTW outdoor fiber optic cable, is also called single loose tube steel tape armored cable, is consisted of 250um fibers held in an gel filled central loose tube surrounded by water-blocking tape an den cased in corrugated, polyethylene laminated steel tape. The cable features two parallel steel wire strength members encased in the PE outer jacket
Application
– Adapted to outdoor distribution.
– Suitable for external applications in ducts and aerial applications.
– Long distance and local area network communication.
Technical Specifications
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| (+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| Bandwidth (Class A) | @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Fiber Characteristics
| Cable Type | Fiber Count | Cable Diameter | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush ResistanceLong/Short Term N/100mm | Bending Radius Static |
| mm | /Dynamic mm | |||||
| GYXS/GYXTW-2~12 | 2~12 | 7 | 110 | 600/1500 | 300/1000 | 10D/20D |
Storage/Operating Temperature : -40℃ to + 70℃
