Fully Dielectric Design: The cable is completely dielectric, making it ideal for self-supporting, direct-buried, and duct installations without the need for bonding or grounding, simplifying deployment.
Durable PE Jacket: The polyethylene (PE) jacket, enhanced with additives, provides excellent protection against environmental factors such as UV radiation, fungus, and abrasion, ensuring long-lasting performance.
Exceptional Crush Resistance: With two parallel FRP dielectric strength members coated with EAA, the cable offers superior crush resistance, ensuring stability and durability under challenging conditions.
Versatile Fiber Options: Available with 1-24 cores, the cable accommodates various FTTH needs, offering flexibility in design and capacity for different installation requirements.
Compact and Lightweight: With an outer diameter of 4-9mm and a lightweight design (only 40-45 Kg/km), this cable is easy to handle, transport, and install, making it a cost-effective solution for fiber drop applications.
Description:

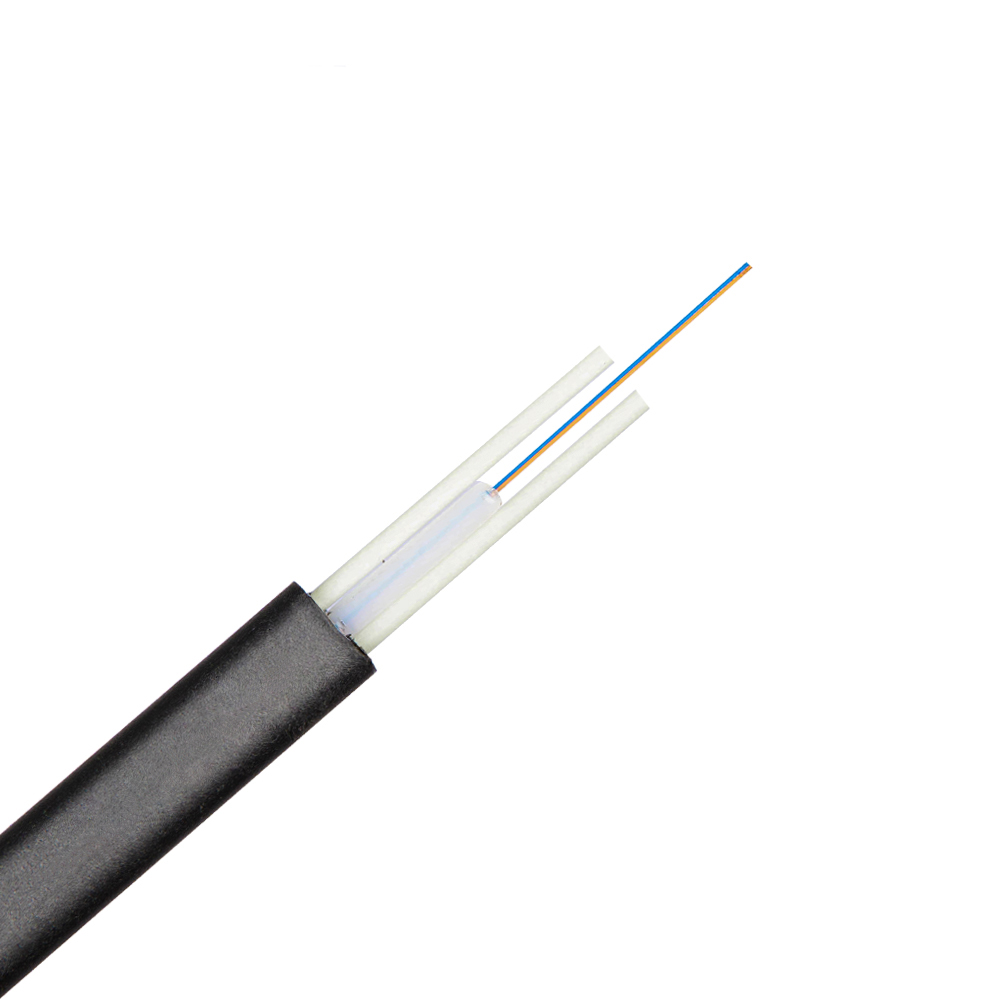

PiogoodsR Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Fully dielectric design, ideal for drop applications, offering ease of access as well as easy installation.
PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

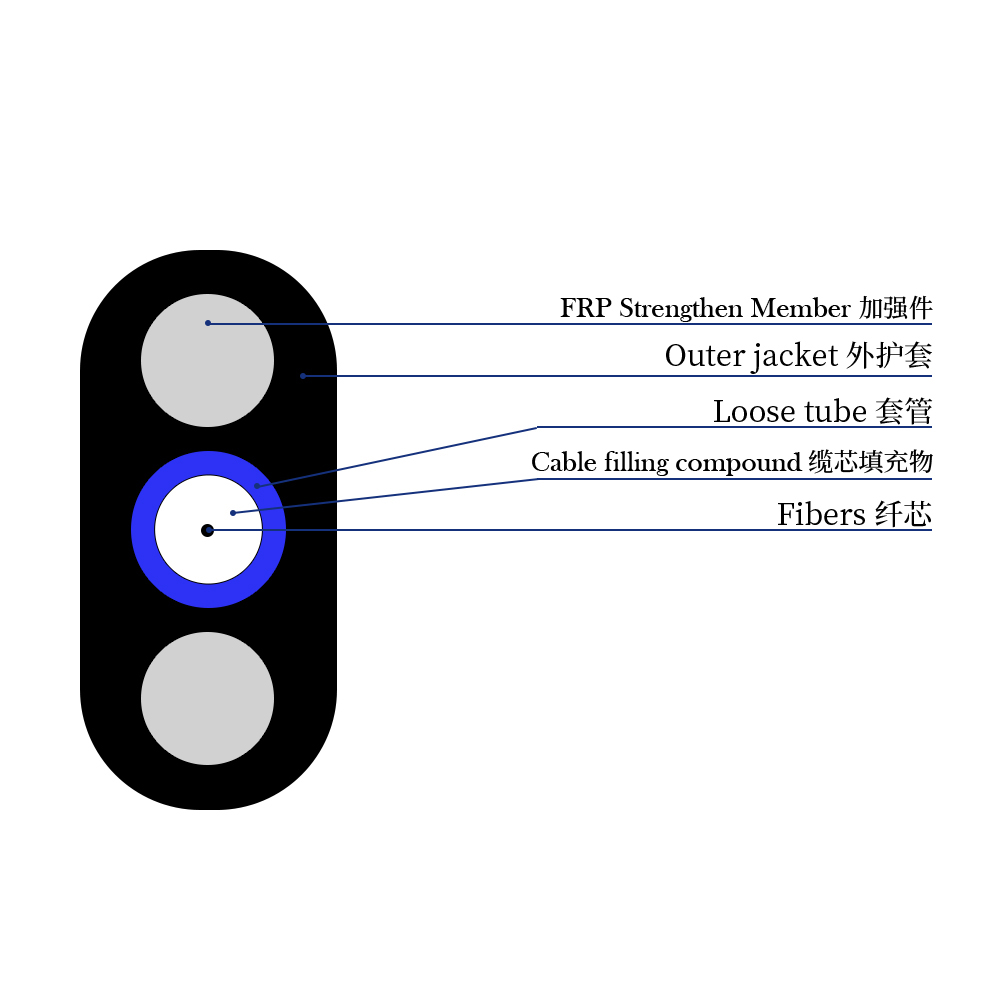

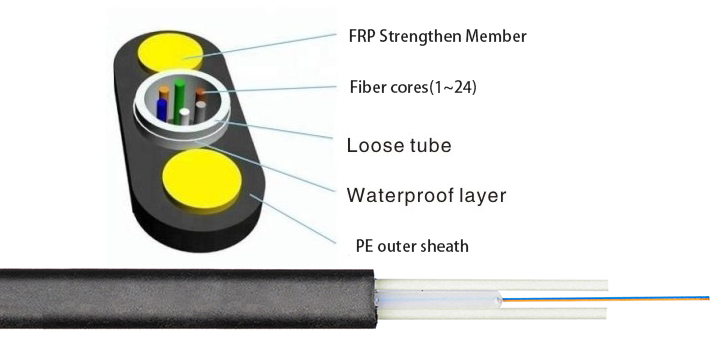

Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence.
Parameters:
| Cores available | 1,2,4,6,8,12,24 |
| Outer diameter | 4-9mm |
| Application | FTTH |
| Outer jacket thickness | 2.0mm |
| Double strength member | 2×1.5mmFRP |
| Tube No. | 1 |
| Fiber
NO |
Tube
NO |
Max.Fibers
per tube |
Cable OD (mm) | Weight Kg/km | Max. pulling power Long/short-term N | Max. pressure Long/short-term |
| 1-12 | 1 | 24 | 5*7 | 40 | 300/1100 | 300/1000 |
| 24 | 1 | 24 | 5.5*7.5 | 45 | 300/1100 | 300/1000 |
