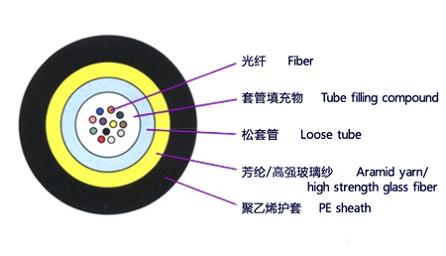

The fibers,250μm, either of single-mode or multimode type, are positioned in a loose tube made
of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of
aramid yarn or high strength glass is applied around the cable core as additional strength
member. Then, the cable is completed with a black or color HDPE sheath
Optical Characteristics:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| (+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| Bandwidth (Class A) | @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Technical Parameters:
| Cable Type | Fiber Count | Cable Diameter | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
| JET 2~12 | 2~12 | 4.2±0.3 | 12 | 60/150 | 300/1000 | 10D/20D |
| JET 14~24 | 14~24 | 4.6±0.3 | 15 | 60/150 | 300/1000 | 10D/20D |
| JET 26~36 | 26~36 | 5.1±0.3 | 18 | 60/150 | 300/1000 | 10D/20D |
| JET 38~48 | 38~48 | 5.6±0.3 | 22 | 60/150 | 300/1000 | 10D/20D |
